PRODUCT SERIES

Chemically Bonded Compound Series (CBC)

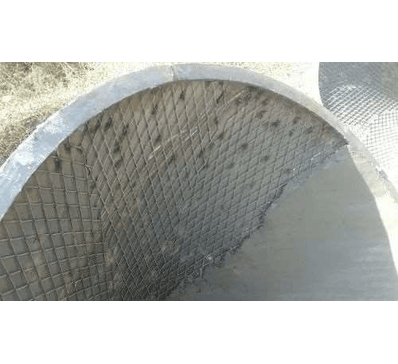

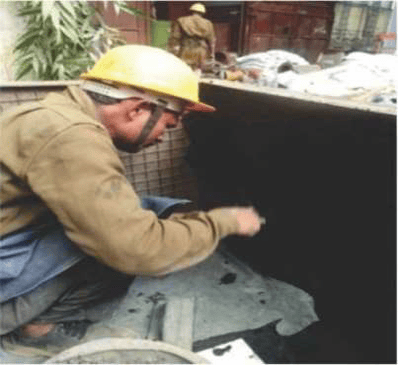

CBC one compound mortar series is trowel onto an anchoring expended mesh.

CBC is a mortar bonded product range; contains extremely hard sintered compounds like Alumina and Silicon Carbide as fillers in CBCTM Linings. CBCTM contains micro and nano-components to ensure high degree of densification by close the pores of the mortar element.

The high hardness fillers of sintered compounds incorporated in the CBCTM matrix offer extremely good sliding wear resistance. CBCTM has a hard sintered Alumina/Bauxite/Silicon Carbide base. CBCTM compounds are available with a variety of bonding agents, depending on the application.

CBC has an advantage for all the grades about flexibility of use. CBCTM can be employed to install new linings with difficult profiles and on the roofs too using few simple lining tools. Recommended CBCTM lining thickness depends on the job requirements and application conditions. The thickness of the lining can be recommended after technical evaluation of BMW at the lining site. Curing time of CBCTM series of compounds is 48 hours.

ProductDescription
CBC 100Moderate wear protection up to 110°C
CBC 500Excellent protection up to 400°C
CBC 900Protection up to 1000°C

Application areas of equipment and system components lined with CBC:

  • Drag Chain Conveyors
  • Pneumatic Conveying Systems for Coal,Cement and Slag
  • Dust Extraction Equipment: Hydro Cyclones , Cyclones
  • Grinding Mill Internal Lining for classifier , mill body and difficult shapes
  • Static and Dynamic Separators: Chutes etc

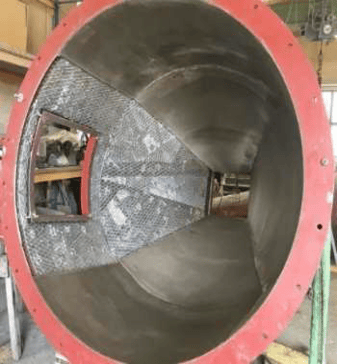

CBC lining provides excellent protection against erosive and corrosive wear across a wide temperature range.

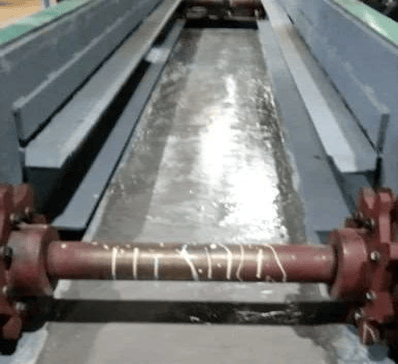

A planetary mixer is used for preparation, ensuring proper consistency before application on mesh-lined surfaces.
