Fused Alumina Powder & Abrasive Manufacturing Plant

BMW operates a state-of-the-art manufacturing facility in Bhagwanpur, Haridwar, Uttarakhand.

Fused Alumina Manufacturing Process

Calcined Alumina melted at 2200°C produces White Fused Alumina — a high-grade abrasive material.

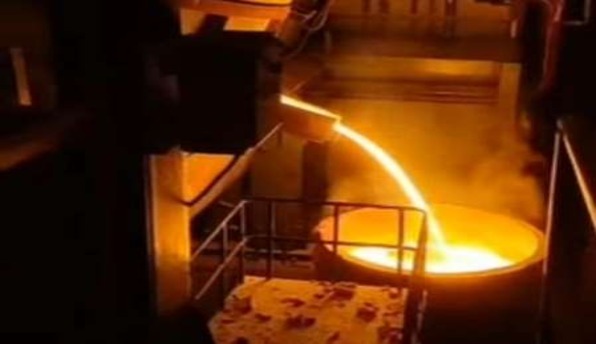

Alumina melting at 2200°C

Cooling and fracturing

Properties of Fused Alumina

ColourWhite
Purity99%+
Hardness9 Mohs
Chemical resistanceHigh
Density3.90 gm/cc
InsulationStrong
ToughnessHigh
Crystal Formation α trigonal system

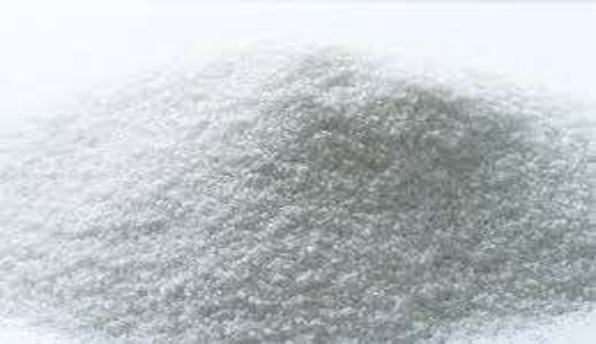

Fused Alumina Abrasive

High-grade abrasive used in blasting, grinding, polishing and coatings.

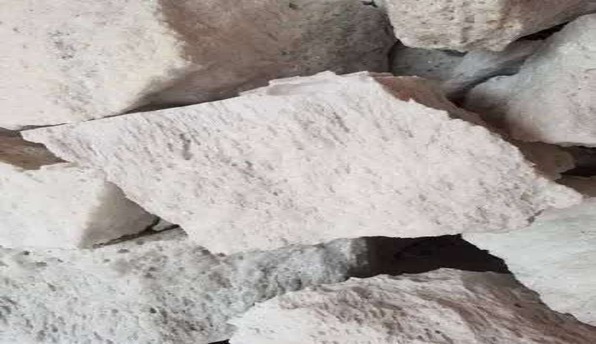

Calcined Fused Alumina

Properties of Calcined Fused Alumina Abrasive

Mesh GritWhite
Micro powder gradeIt is very suitable for wet sandblasting and polishing operations.
Hardness9 on Moh's scale
Metal RemovalMinimal
Typical ApplicationsPolishing, lapping, refractories, ceramics, fire retardants/smoke suppressant

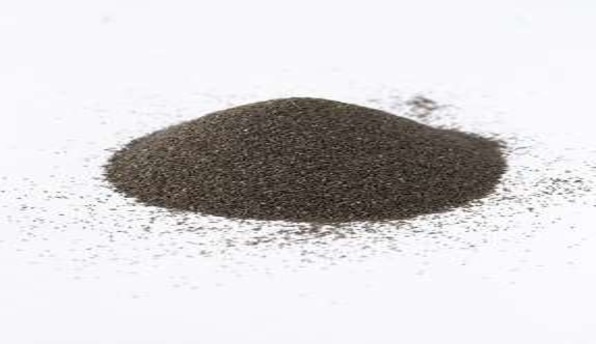

Brown Fused Alumina Powder

Brown fused alumina takes the high quality bauxite as the raw material, mixing with iron powder and anthracite, produced by melting in the electric arc furnace at a high temperature over 2000℃.
Main chemical composition is AL2O3, TiO2, and a small amount of SiO2 and Fe2O3 etc. Toughness is higher than SiC. The texture is dense, the hardness is high, and the grains appear the spherical shape
It is suitable for manufacturing ceramic and abrasive tools, as well as grinding, polishing, sandblasting, precision casting, etc. It can also be used for manufacturing high-grade refractory materials too.

Calcined Fused Alumina Abrasive

Properties of Brown Fused Alumina

Mohs Hardness9 Moh
Volume Density3.6-3.9g/cm³
Bulk Density1.75-1.95g/cm³
Melting Point2250°C
Specific Gravity3.6-3.9g/cm³
Maximum Service Temperature1900°C

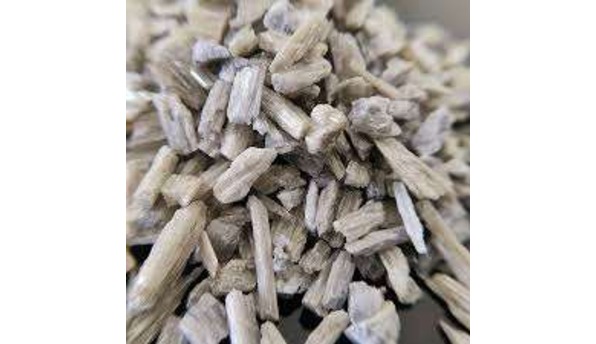

Fused Mullite Flakes

Mullite is obtained from fusion of high purity Silica Sand and Alumina in an electric arc furnace. It exhibits low thermal expansion and high thermal shock resistance. Its Chemical formula is 3Al2O32SiO2 or 2Al2O3SiO2. Mullite is present in the form of fine needles in alumina. It is used in high temperature refractory material, crucibles and electric arc furnace.

Mullite Flakes

Mullite Powdered Flakes
